LINJIE Motorcycle Double ColorHigh Low Beam Wiring Harness Kit 12V Relay Double Color Spot Lights Wiring On Off Waterproof Switch Motorcycle High Low Beam Wiring Kit (5.75ft), Black

About this item

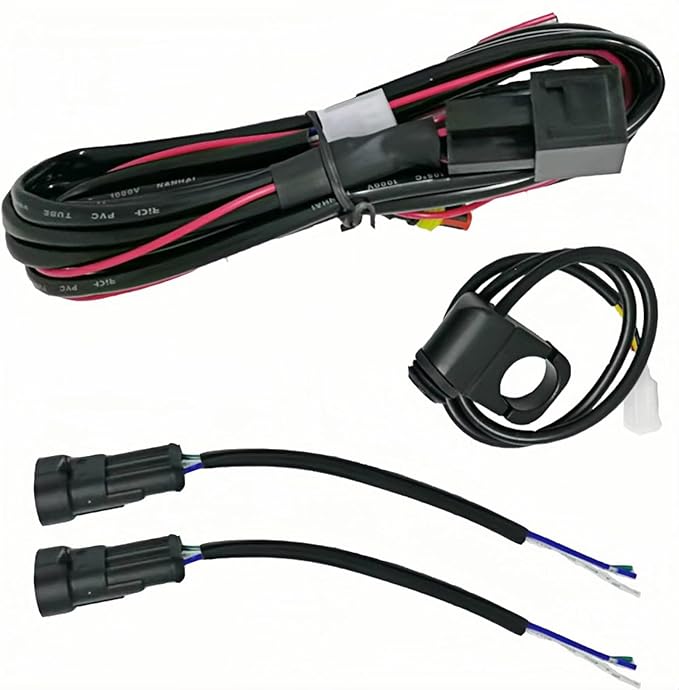

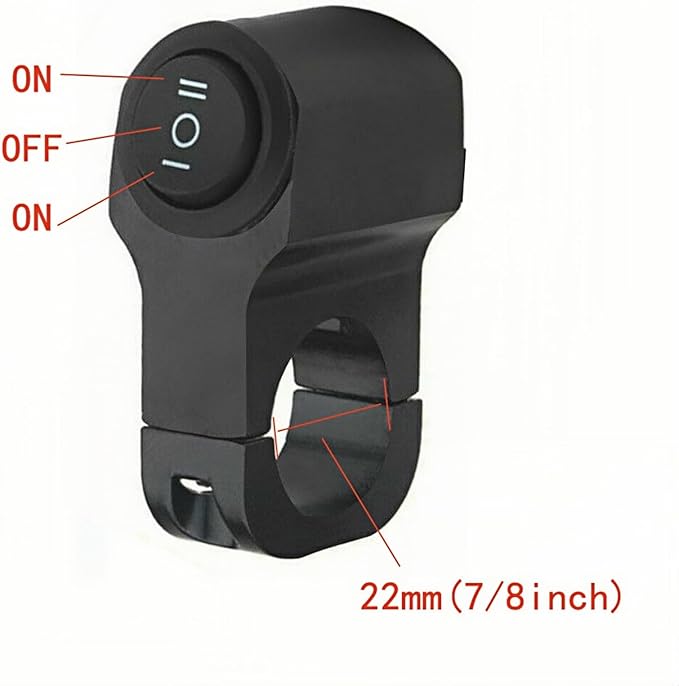

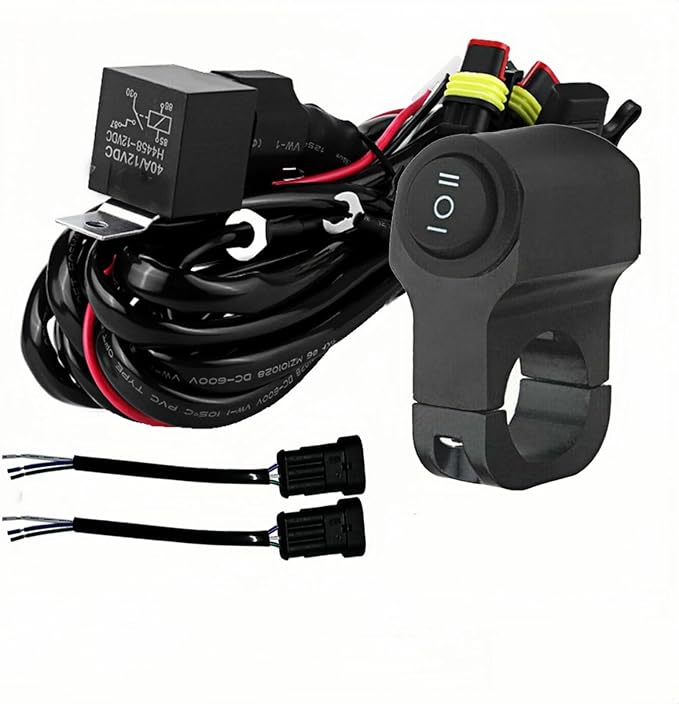

WIDE APPLICATION: LENJIEMT light wiring harness kit universal fit for 78 inch (22mm) handlebars in diameter, compatible with 12V motorcycles, ATV, Pit Dirt bikes, Scooters, etc. This wiring kit is equipped with an ON OFF handlebar switch and 40A relay with a 15A blade fuse.

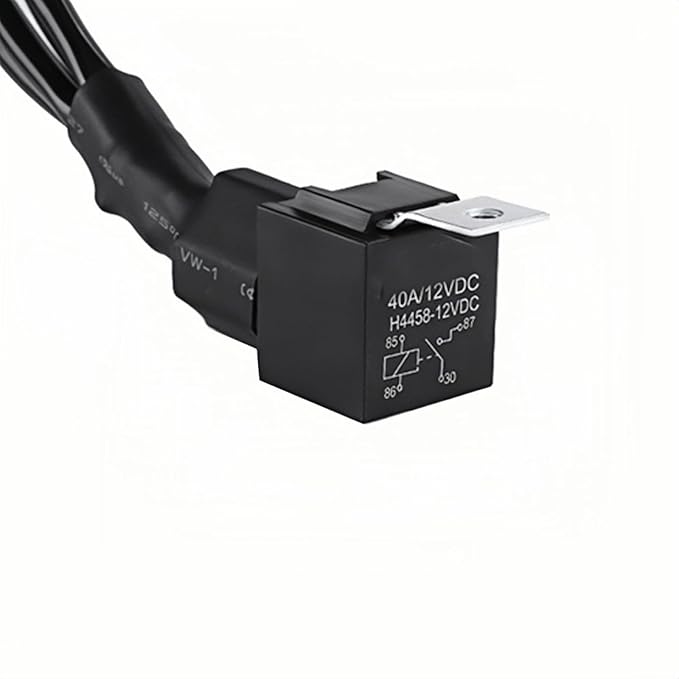

CIRCUIT PROTECTION: Feature a 40A power relay for safety protection and conversion circuit, built-in blade fuse with a waterproof fuse holder protects the circuit when an over-current or short circuit occurs, and provides high-performance waterproofing.

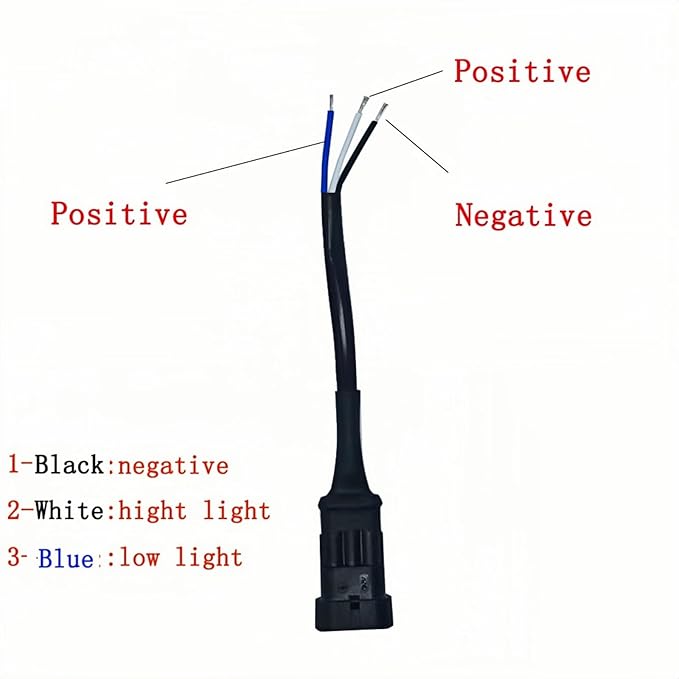

TWO AVAILABLE LEADS: Come with two sets of light output connectors and a 5ft harness with a wire gauge of 18 AWG. The plug-in connectors are convenient for hooking up lights less than 120W. Perfectly used on dual color lights or the light that needs highlow beam adjustment.
PREMIUM MATERIAL: The motorcycle wiring harness kit is made of high quality copper and PVC insulation tube, which is flexible, heat-resistant, and wear-resistant. Sturdy CNC aluminum alloy switch, no worry about breaking and flaking.

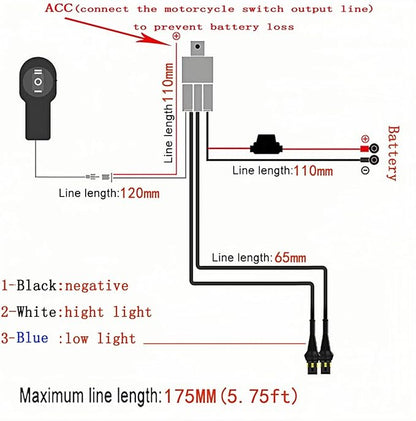

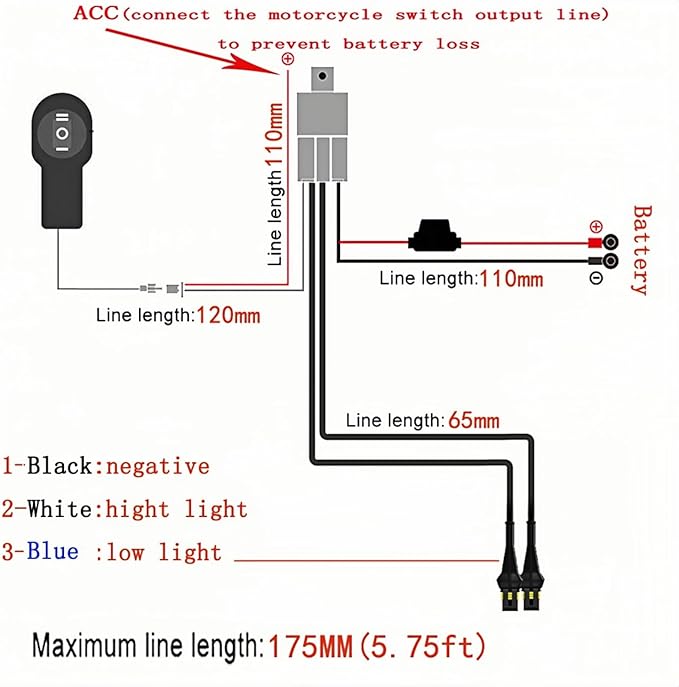

ABOUT ACC lINE: How to connect the ACC wire? The ACC wire can connect to other positive output wires, or connect to the positive electrode of the battery directly (this operation must start the motorcycle to use the light, otherwise the battery will be depleted). Connecting the ACC wire to the motorbike's switch output wire will prevent the battery from running out of power.
